BACKORDER ONLY 7-14 days to ship

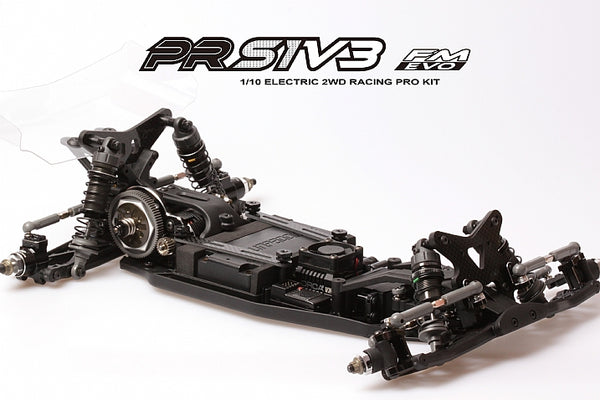

2020 2wd EVO Buggy
Includes all updates pictured.

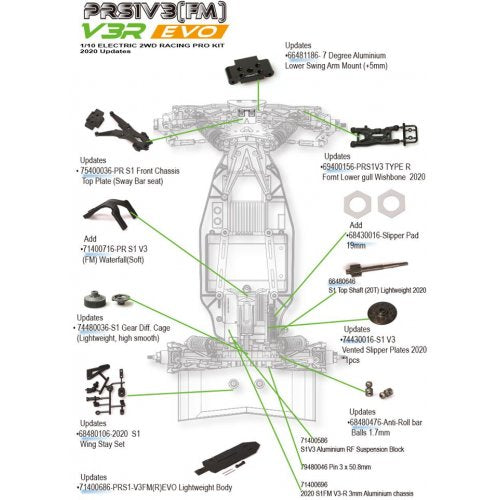

V3R Evo – Updates
- New 7075 2.5mm Thick -5mm Length Chassis
- New RR and RF Hangers with Pills
- New CNC Aluminium Rear hubs
- New Low Mount (-2mm) Motor Plate with Spur Protector
- New Ackerman Plate • High Tensile Turnbuckles – Ultra Strong • New Sleek Body
- New Grey Rod Ends and Shock Absorber Plastics
- New Foam Battery Spacers • New ZZ Ball Bearings
- Steel front Axles
- Aluminium +5mm, 3 Degree Front Kick Up Block
In addition to all the updates the car is still packed with lots of items normally considered to be option parts:
- CNC Alloy Servo Mounts
- 4 Degree Alloy Caster Blocks
- Front Camber Plates
- Vented Slipper Plates • Sway Bar Set
- 34 Tooth Alloy Idler Gear
Specifications
Items required to complete
- Length: 411mm
- Width: 250mm
- Height: 145mm
- Wheelbase: 280mm
- Front track: 248mm
- Rear track: 248mm
- Weight:1480-1510 g
- 12.8mm big bore oil fill in shock
- 3 gears deploy in gear case
- Metal gear differential
- Dual pad slipper mounting
- Complete sealed gear bearing
- 12mm Hex fit wheels
- Metric socket screw (Hex Screws)
Item Required To Complete
- Metric 1.5mm, 2.0mm hex tools
- Metric 5.5mm, 7.0mm 8.0mm Nut Driver
- 2 Channel Surface Radio System (Minimum)
- 1/10 ESC, Motor & Pinion Gear
- High Speed Servo
- 2S LiPo Shorty Battery & Compatible Lipo Charger
- Polycarbonate Paint for Bodies
-
/10 Buggy Tires, inserts and CA Glu
Links to the manual for this buggy please:
https://www.dropbox.com/sh/muyv1jh74x7u4mj/AAAyz43wh7izggHouactAvg-a?dl=0
